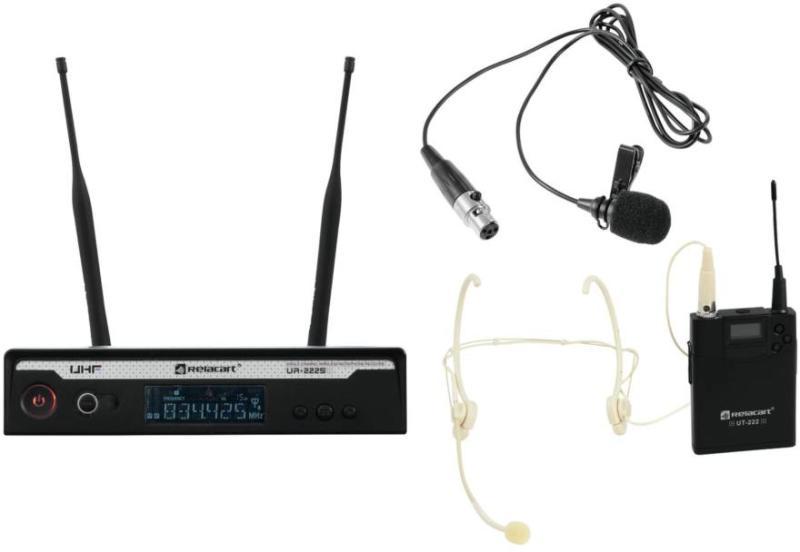

13055205 RELACART UR-222S 1-Channel UHF ReceiverMultifrequency wireless receiver with true diversity

• Multifrequency wireless receiver with high-quality true diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (UH-222S, UH-222D ), pocket transmitter (UT-222)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Housing design: Desktop console 1 U; (19") 48.3 cm rack installation (provided)

13055211 RELACART UT-222 Bodypack with HM-800S HeadsetPocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

• Pocket transmitter for receivers UR-222S and UR-260D
• Durable aluminum alloy housing, applicable for touring
• Incl. headset microphone HM-800S
• Lavalier microphone LM-C400 optional
• Pilot tone technology (PLL) for interference-free operation
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• Operation range approx. 80 meters
• OLED for battery status, frequency, channel and group
• Mute function
• Adjustable input gain
• RF output power Hi/Low adjustable
• Lock function avoids accidental changing of settings
• Long battery life for up to 11 hours continuous operation
• License-free and approved in the EU (please check on a country-by-country basis)

Microphone

• Polar pattern: Omnidirectional

13055205 RELACART UR-222S 1-Channel UHF ReceiverType: ReceiverPower supply: 100-240 V AC, 50/60 Hz
12 V DC 1 APower consumption: 2.6 WPower connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)Number of channels: 1Frequency range: 45 - 18000 HzS/N ratio: >105 dBConnections: 2 x Antenna via BNC (F) 8 VOutput: 1 x Microphone via 3-pin XLROutput: 1 x Microphone via 6.3 mm plug (unbal. )Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHzFrequency selection: 90 Switchable frequencys
in 10 groups with up to 10 preset frequencies eachModulation: FMFrequency stability: ± 0.0005 %Range: 80 mSwitching bandwidth: 11 MHzswitch: on/off switchMaterial: MetalHousing design: Desktop console 1 U; (19") 48.3 cm rack installation (provided)Width: 20 cmHeight: 4.6 cmDepth: 26 cmWeight: 1.95 kg13055211 RELACART UT-222 Bodypack with HM-800S HeadsetType: Bodypack with microphoneWeight: 0.20 kgTransmitterType: Pocket transmitterPower supply: 3 V DCPower connection: Battery/battery packBattery: 2 x Mignon (AA) (not included)Color: BlackFrequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHzFrequency selection: 90 Switchable frequencys
in 10 groups with up to 10 preset frequencies eachModulation: FMRange: 80 mSwitching bandwidth: 11 MHzswitch: Mute control; on/off switchMaterial: AluminumWidth: 6.6 cmHeight: 8.4 cmDepth: 2.3 cmWeight: 0.19 kgMicrophoneType: HeadsetPower supply: 2-10 V DCLength of the cable: 1.0 mCapsule type: Condenser
size: Ř 5 mm x 6 mmPolar pattern: OmnidirectionalFrequency range: 45 - 18000 HzSensitivity: -47 dBImpedance: 2200 OhmConnector type: Mini XLR (W) 4-pinColor: skin-colored
