License-free 4-channel wireless microphone system

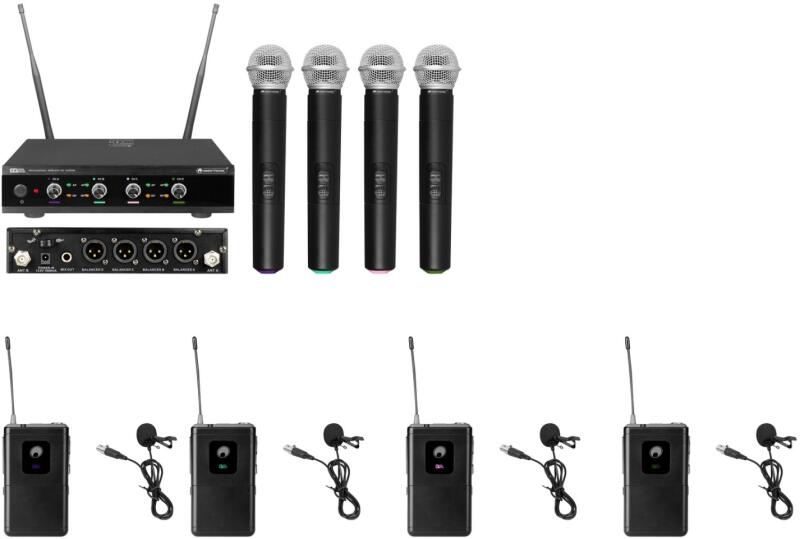

OMNITRONIC UHF-E4 Wireless Mic System 823.6/826.1/828.6/831.1MHz

• 4- channel receiver and 4 hand-held microphones with UHF PLL technology
• Easy handling
• 4 separate channels with volume controls and LEDs for carrier signal and audio signal
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Microphones with color indication
• Operating range up to 60m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Up to 12 transmitters can be operated in parallel without interference
• For application areas such as: Clubs/dancing school; Wedding/gala/events; mobile use; mobile djs / entertainer; small rental

Receiver

• D esktop console housing
• (19") 48.3 cm rack installation possible 1 U

Microphone

• Pola r pattern: Cardioid

Package contents

• 1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 3 x mounting bracket, 3 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 823.6MHz + Lavalier MicrophoneBodypack transmitter with lavalier microphone for UHF-E receivers

• Sensitivity adjustable
• Operating range up to 60m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe

Microphone

• Polar pattern: Cardioid

Package contents

• 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 826.1MHz + Lavalier MicrophoneBodypack transmitter with lavalier microphone for UHF-E receivers

• Sensitivity adjustable
• Polar pattern: Cardioid
• Operating range up to 60m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe

Package contents

• 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 828.6MHz + Lavalier MicrophoneBodypack transmitter with lavalier microphone for UHF-E receivers

• Sensitivity adjustable
• Polar pattern: Cardioid
• Operating range up to 60m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe

Package contents

• 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

OMNITRONIC UHF-E Series Bodypack 831.1MHz + Lavalier MicrophoneBodypack transmitter with lavalier microphone for UHF-E receivers

• Sensitivity adjustable
• Polar pattern: Cardioid
• Operating range up to 60m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe

Package contents

• 1 x transmitter, 1 x microphone, 2 x battery, 1 x user manual, 1 x declaration of conformity

Így is ismerheti: UHF E 4 20000976, UHFE420000976, UHF E4 20000976, UHF-E420000976
